General Introduction

The truss-assisted manipulator does not occupy any ground space and is suspended through guide rails. The aerial guide rail extends there, and the truss power-assisted manipulator works there. The truss power-assisted manipulator not only has a variety of tasks, but also can move through guide rails, so one truss power-assisted manipulator can serve multiple tooling equipment or multiple workstations, and is cost-effective. It is widely used in logistics transportation, assembly, processing, home appliances, automobiles, glass, electronics, mining, energy, food and beverage and other production fields.

The lifting Device for this manipulator

1. Electric Chain Hoist-- which is the most economic choice for most programs, and the model and detailed spec. will be designed base on the load characteristics.

2. Smart lifter--which is becoming more and more popular in production as the up and down movement can be detected by the sensor inside and it can adjust the movement direction automatically, speed can be adjustable, too.

3. Pneumatic Hoist--it is driven by air, and the aftersale maintenace is easier and the operation is simplier.

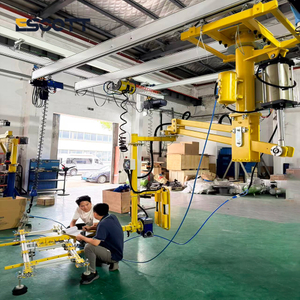

4. Rigid arm pneumatic power-assisted manipulator--It cleverly applies the principle of aerodynamic balance, allowing the operator to push and pull heavy objects accordingly to achieve balanced movement and positioning in space.

Models for Reference

Here we put some of the models that we used mostly for our programs for your reference.

1.Electric hoist

NAME	BMS125	BMS250	BMS500	BMS1000	BMS2000
Maximum   load（Kg）	125	250	500	1000	2000
Lifting   speed (m/ min)	8/2	8/2	8/2	4/1	4/1
Motor   power(Kw）	0.4/0.1	0.4/0.1	0.4/0.1	0.75/0.2	1.5/0.37
Lifting   Medium	Chain
Power   supply	220-460V

2.Intelligent hoist

NAME	IAD-H80	IAD-H200	IAD-H300	IAD-H600
Maximum   load（Kg）	80	200	300	600
Handle-Lifting   speed-unloaded (m/ min)	40	30	15	7.5
Float-Lifting-speed-unloaded (m/ min)	36	27	13.5	6.75
Maximum   stroke (m)	3.5	3.5	3.5	1.7
Lifting   Medium	Wire   rope
Power   supply	220V±10% 50HZ

3.Pneumatic air balancer

NAME	BW005060	BW015080	BW020120	BW032080	BW035080	BW050080
Maximum load（Kg）	22	68	90	147	158	227
Maximum stroke(m)	1.5	2.0	3.0	2.0	2.0	2.0
Lifting   medium	Wire   rope
Power   supply	Air   pressure

Advantage for Each Lifting Device

1. Electric hoist usually uses a two-speed control mode; It has low cost, simple installation and operation, low maintenance cost, and is suitable for factory warehouses and other places.

2. Intelligent hoist is composed of servo drive, servo motor, reducer, etc., and is controlled by a microprocessor, which can get the working direction of the power from the operator and generate the power toward upward and downward.Within the rated range, the workpiece can be moved at any variable speed to achieve efficient handling. It has easy operation, high precision, intelligent, controllable speed and safe and reliable.

3.Pneumatic air balancer has the whole suspension function in the free stroke, which can realize the accurate positioning of the workpiece load shifting assembly and easy operation.

4.Rigid arm pneumatic power-assisted manipulator--Due to its characteristics of being weightless, accurate and intuitive, easy to operate, safe and efficient, "balance crane" is widely used in modern industry for material transfer, high-frequency transportation, precise positioning, component assembly and other occasions.
