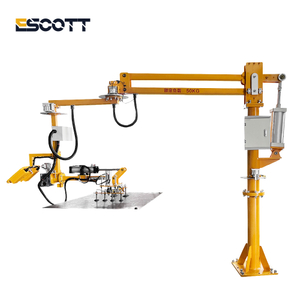

300kg Suction Cup Manipulator Board Suction Crane

Product Type: Rigid Arm Manipulator
Working Stroke: 0-3000mm and customized
Working Load: 50-300kg and customized
Fixture Tooling: Suction pads
Application:  screen, big board, auto carriage, glasses, metal rolls
Lead time: 30-50 days

Availability:
Quantity:
  • SLJ-300-SUC

  • Escott

  • SLJ-300-SUC

Product Description

Basic Info.

Condition New
Application Use for handling big boards or regular shape loads
Type Manipulator with Suction Cups Fixture Capacity 300kg, Customized
Up and Down Stroke 0-1600mm, Customized Working Radius 2500-3000mm, Customized
Max Height 3500mm, Customized Basic Design Clamping, Lifting, Rotating
Installation Form Ground Installation, Customized Specification Customized
Transport Package Wood Box Origin China
Trademark Escott, or customized Production Capacity 100 pcs/Month


General Introduction

The industry manipulator is a set of assisted handling equipment designed based on dynamics and ergonomics, and its operation mode is through manual button operation, by the gripping of the fixture tooling to achieve the transfer action of the object.

The general application scenarios mainly include:
1. The target object is too heavy or too large to achieve manual handling
2. The transfer angle and position of the target object are difficult to achieve manually
3. The target object is easy to cause high loss through manual transfer
4. The target object is easy to cause large manpower loss

Based on the above situation, we introduced the manipulator as an auxiliary handling tool to solve the problem perfectly. In this process, irregular objects, heavy objects, and special objects have achieved efficient transfer, saving and protecting manpower loss, and it’s been more and more widely used in the industrial production process.


Design Sketch and Main Parts Introduction


微信图片_20231204110839


  1.Column
  2. Cylinder
  3. Air Tank
  4. Control Box
  5. Handle
  6. Tooling Structure
  7. Joint Brake
































Working Object Description:

This kind of design used suction pad as the fixture tool, and it is mostly on big screens, boards, door, glasses, motor carriage, even metal rolls in production. We have different appliction scenarios, mostly it needs the working objects has a flat and smooth interface to make the SUCTION works.

1. Surface flat and smooth

2. Weight mostly from 50 to 300kg, and suction pad types and quantities will be designed base on the working load


Installation Way: installation way bases on the condition of the workshop.

1.Fixed Column

2.Movable Column

3.Fixed Overhead (Wall installation)

4. Running Overhead (by Sliding trolley)


Product Advantage

The industry manipulator is used in the production line to help the handling equipment, the equipment is simple to operate, safe and reliable, easy maintenance and other significant features, only a simple button operation can achieve the rapid handling of the workpiece, is the most ideal handling equipment for modern production lines, warehouses and so on.
