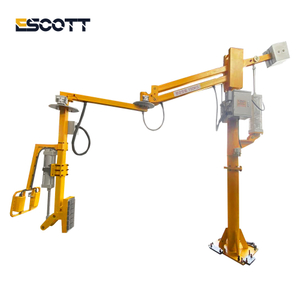

50kg Industrial Handling Equipment Pneumatic Manipulator for Electrical Industry

Basic Info.

Condition	New		Application	Use for handling Electrical Equipment, Industrial Equipment
Type	Manipulator with Clamping Fixture		Capacity	50kg, Customized
Up and Down Stroke	0-3000mm, Customized		Working Radius	2500-3000mm, Customized
Max Height	Customized		Basic Design	Clamping, Lifting, Rotating
Installation Form	Customized		Specification	Customized
Transport Package	Wood Box		Origin	China
Trademark	Escott, or customized		Production Capacity	100 pcs/Month

General Introduction

The industry manipulator is a type of equipment that assists in handling objects by using principles of dynamics and ergonomics. It is operated manually through buttons and utilizes fixture tooling to move objects.

The manipulator is commonly used in the following situations:

1.When the object is too heavy or large to be handled manually.

2.When achieving the desired angle and position manually is difficult.

3.When manually transferring the object can result in significant loss.

4.When manually transferring the object can lead to a significant loss of manpower.

As a result, it is increasingly utilized in industrial production processes.

Design Sketch for different kind of loads

Working Method Description

This particular design employs specialized clamping devices that are custom-shaped and engineered according to the properties of the object, including its form, mass, and surface. While there are different approaches to clamping, the general method involves securing the load externally and subsequently transporting and transferring it across the assembly line. The load specifications typically entail:

1.The proper  dimensions to ensure the claws can securely grip it from the outside.

2.The weight typically falls within the range of 50 to 500kg.

Some other Fixture Tooling Types as below for your reference

Product Operate Guide

1. Operation platform: equipped with load control system, material grasping, transfer and extraction can be realized through the control button; The mechanical gripper must ensure that the workpiece can be grasped, moved and discharged smoothly.

2. Safety protection: equipped with safety misoperation protection device (the work is not in place, the workpiece can not be unloaded), supporting safety control system (the manipulator will not rise and fall rapidly because of misoperation), brake device.
