Automatic Robot Palletizer Portable Robot with Gripper for Bag Palletizing

Load Capacity : Up to 50kg
Gripping Method : Electric
Working Range : 1000mm
Speed : Up to 20 items per minute
Power Supply : AC 220V 50Hz, Power: 3kW
Control System : PLC Control + Vision Recognition System
Operating Temperature : -10°C to 40°C
Safety Features : Mechanical guard, emergency stop button, collision detection, and obstacle avoidance features

Availability:

Quantity:



Inquire Add to Basket

Product Description

Product Description

|

Product Description

The Automatic Robot Palletizer is a highly efficient and flexible solution designed for palletizing bagged items. Equipped with high-precision grippers, it can automatically handle and stack various types of bagged goods. This portable robot is widely used in industries such as logistics, food, chemicals, and pharmaceuticals. Its compact design makes it easy to move, allowing for deployment in different work environments.

|

Product Parameters

Palletizer

palletizer

Parameter	Description
Load Capacity	Up to 50kg
Gripping Method	Electric or pneumatic grippers, adaptable to different bagged products
Working Range	1000mm x 1000mm x 1500mm
Positioning Accuracy	±1mm
Speed	Up to 20 items per minute
Applicable Bag Sizes	Width: 250mm-800mm, Height: 200mm-600mm
Power Supply	AC 220V 50Hz, Power: 3kW
Control System	PLC Control + Vision Recognition System
User Interface	Touchscreen control, easy programming and setup
Operating Temperature	-10°C to 40°C
Safety Features	Mechanical guard, emergency stop button, collision detection, and obstacle avoidance features

|

Main Features

Efficiency: Equipped with advanced grabbing and stacking algorithms, it can quickly complete the palletizing process, significantly improving production line efficiency.

Flexibility: Adjustable working height and range to accommodate different bag sizes and weights.

Intelligent Control: Uses an efficient vision system and smart software to precisely identify products and automatically optimize stacking sequences.

Human-Machine Collaboration: Designed with safety features, allowing it to work alongside operators while ensuring a safe working environment.

Easy Mobility: Lightweight structure, easy to move and relocate according to production needs.

User-Friendly Operation: Simple programming and settings, requiring no specialized skills for daily maintenance and operation.

Fixture

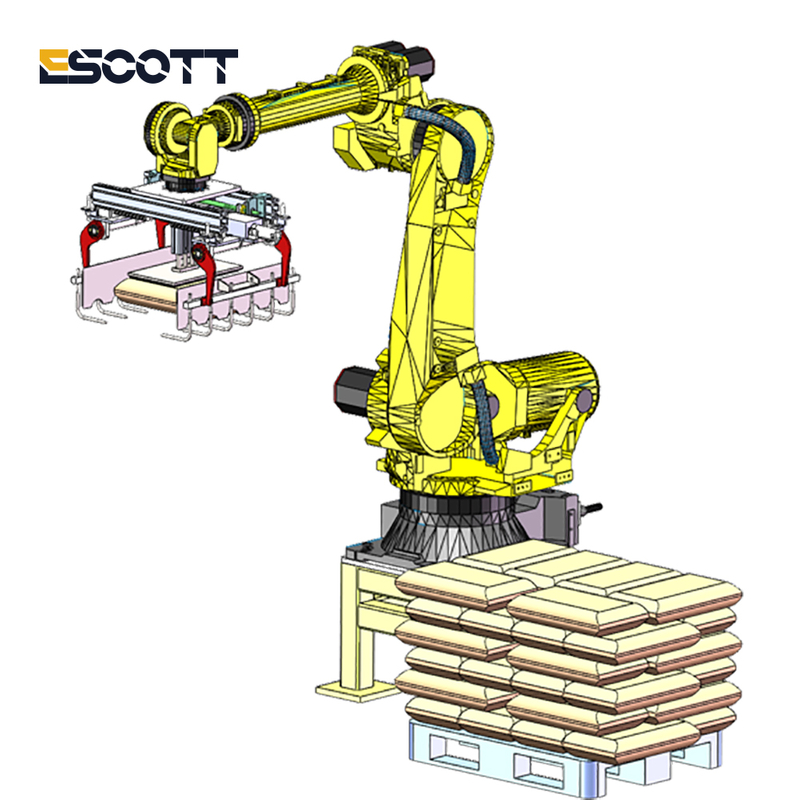

Robot Arm

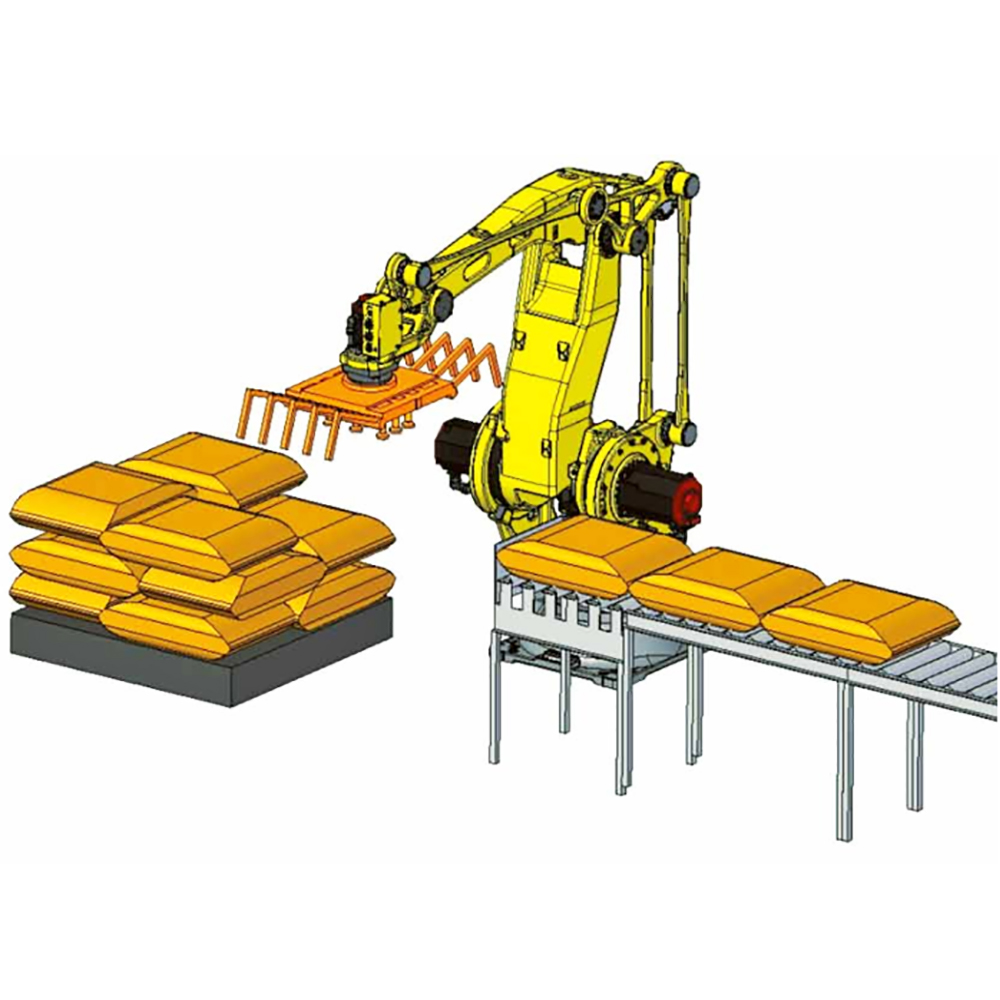

Palletizer

|

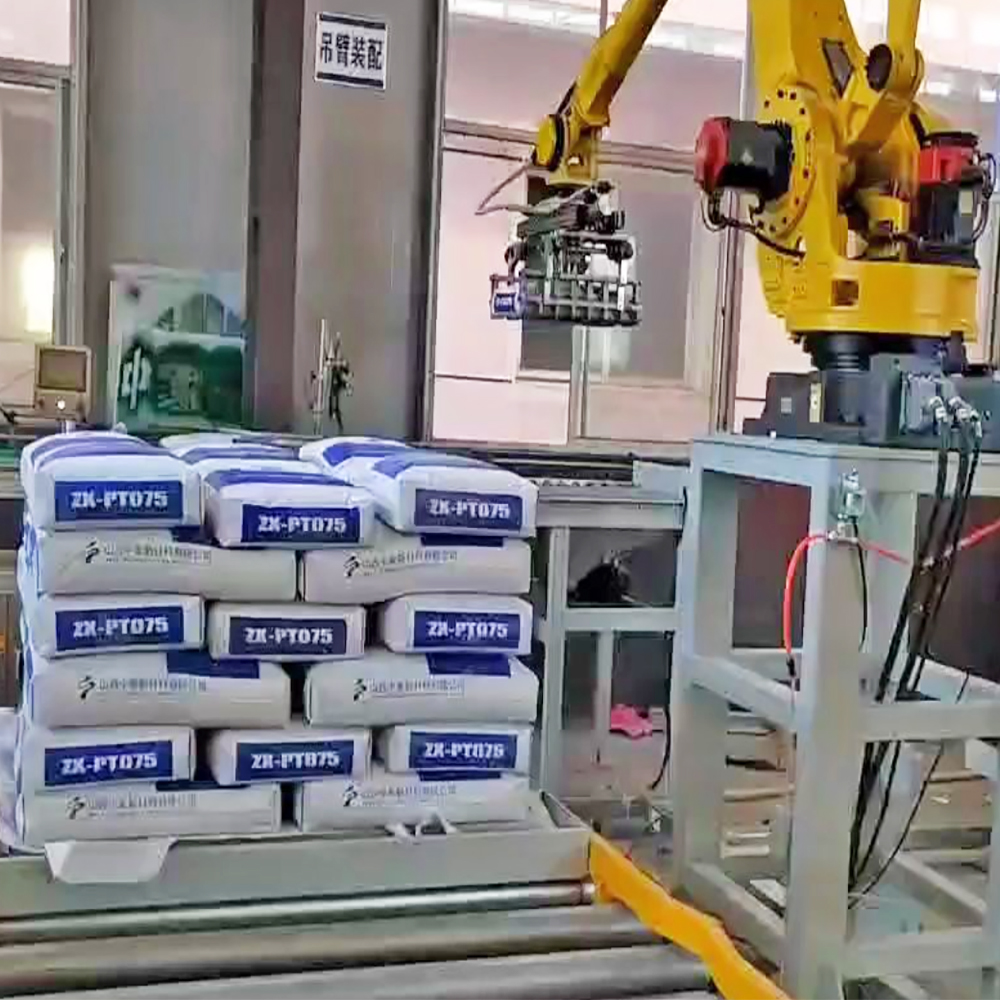

Working Scenario

Logistics Industry: For stacking and organizing bagged goods, such as parcel bags and material bags, improving warehouse efficiency.
Food Industry: Suitable for stacking food bags such as flour bags, rice bags, sugar bags, etc.
Chemical Industry: Ideal for handling chemical product bags like cement bags, fertilizer bags, and other industrial bags.
Pharmaceutical Industry: Used for palletizing pharmaceutical bags, enhancing automation in production.
E-commerce Warehouses: Automatic sorting and stacking of bagged items, improving warehouse handling efficiency.
