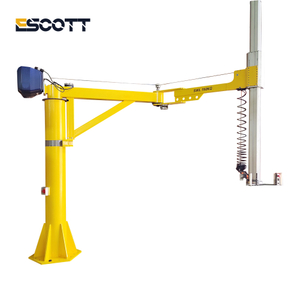

Load 80 Kg Sucker Folding Arm Crane for Metal Box

Product Type: Folding arm crane-Intelligent hoist
Working Stroke: 0-2000mm or customized
Working Load: 80kg; customized
Fixture Tooling: Hook or customized clamping fixtureApplication:Production lines in Factories And Warehouses
After-sales Service: Video technical support, online support
Warranty: 1 Year
Lead time: 30-50 days
Availability:
Quantity:
  • ESCOTT

Product Description

Basic Info.


Condition New
Application

Use for handling,palletizing, loading and unloading in production lines.

Type Folding arm Crane-intelligent hoist Capacity 80kg, Customized
Up and Down Stroke 0-2000mm, Customized Working Radius 3000mm, Customized
Max Height 3500mm, Customized Basic Design Clamping, Lifting, Rotating
Installation Form Ground Installation, Customized Specification Customized
Transport Package Wood Box Origin China
Trademark Escott, or customized Production Capacity 100 pcs/Month

The composition of the Folding arm crane of the intelligent hoist

1、Intelligent control: Intelligent hoist hoist adopts advanced intelligent control system, which can be operated and controlled by computer, touch screen or wireless remote control. These systems usually have automated functions, which can realize automatic positioning, path planning, motion control, etc., to improve handling efficiency and accuracy.

2、Folding arm lifting function: The folding arm lifting of the intelligent hoist combines the handling capacity of the folding arm lifting. They typically have adjustable arm lengths and angles that can be adapted to different work scenarios and space constraints. The folding arm lifting part can be equipped with different types of lifting tools and accessories according to needs, which are used to carry various objects.

3、Versatility: The intelligent hoist can be used for the handling of various objects, such as boxes, goods, parts and so on. They usually have a variety of handling methods, such as lifting, rotation, translation, etc., to adapt to different handling needs.


Smart Hoist Models for Reference

微信图片_20231213102746


Here we put some of the smart hoist models that we used mostly for our programs for your reference.


NAME

IAD-H80

IAD-H200

IAD-H300

IAD-H600

Maximum   load(Kg)

80

200

300

600

Handle-Lifting   speed-unloaded

(m/ min)

40

30

15

7.5

Float-Lifting-speed-unloaded

(m/ min)

36

27

13.5

6.75

Maximum   stroke (m)

3.5

3.5

3.5

1.7

Lifting   Medium

Wire   rope

Power   supply

220V±10% 50HZ


Installation Way

1. Cantilever crane

2.Folding arm crane

3.Movable base cantilever crane

4.Truss crane

Working Scenario

39c9f6761a8e514025b75c19e6cd425    dac2a93b0073ecb08e6c668d4afacd8
