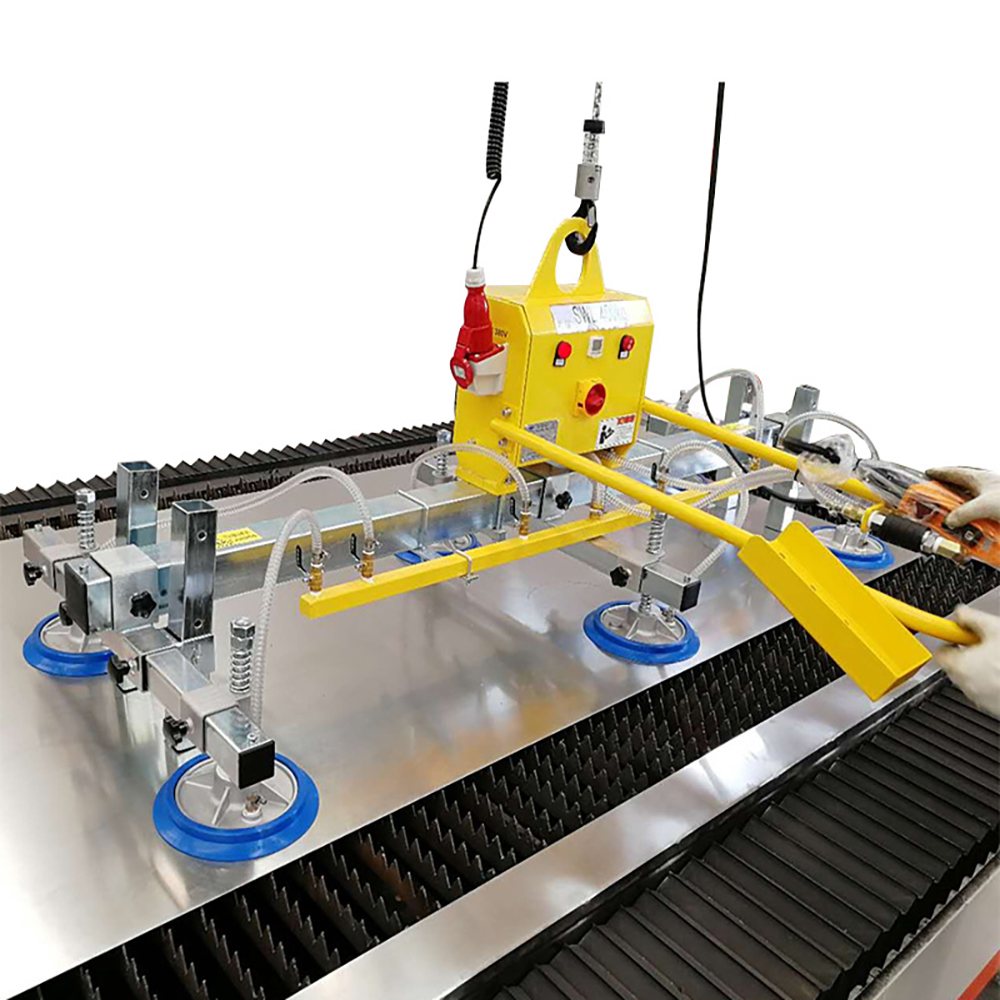

500kg Metal Sheet Big Board Suction Vacuum Lifter Pneumatic Jib Crane

Product Type: Large suction crane
Working Stroke: 0-2000mm or customized
Working Load: 50-2500kg
Fixture Tooling: Suciton pad
Application:Sheet metal, glass board, wood board
After-sales Service: Video technical support, online support
Warranty: 1 Year
Lead time: 30-50 days
Availability:
Quantity:
  • Bla-500-6T

Product Description

Basic Info.

Condition New
Application

Use for handling Glass board,Sheet metal

Type Large suction crane Capacity 50-2500kg, Customized
Up and Down Stroke 0-2000mm, Customized Working Radius 3500mm, Customized
Max Height 3500mm, Customized Basic Design Sucking, Lifting
Installation Form Ground Installation, Customized Specification Customized
Transport Package Wood Box Origin China
Trademark Escott, or customized Production Capacity 100 pcs/Month


Product Introduction

This board suction crane consists of column, track, lifting mechanism and suction cup component. We will customize the design based on the unique characteristics of your workpiece, required processing frequency and specific application scenarios to ensure that your handling requirements are best met. The crane can perform basic actions such as suction, translation, lifting and release. In addition, we can configure more advanced functions such as flipping, rotating and other complex operations according to your specific requirements.

This equipment is widely used in plate processing, machinery, construction and other industries. It is usually used to transport large-area and heavy-weight items, such as large wooden boards, stone slabs, metal plates, glass plates, medium-density boards, etc.


The Suction Structure Frame

The Suction Structure Frame

Models for Reference


Load

Moldel No.

Suction Cup

suction power

vacuum pump

                 power supply

control method

(kg)


(Diameter) (mm)

(kg)(of single cup)


voltage

frequency

phases

manual

250

BLA250-4-230

230

125

VT4.4

220/380

50/60Hz

1/3

manual

250

BLA250-6-150

150

45

VT4.4

220/380

50/60Hz

1/3

manual

400

BLA400-8-150

150

60

VT4.4

220/380

50/60Hz

1/3

manual

500

BLA500-6-230

230

125

VT4.4

220/380

50/60Hz

1/3

manual

800

BLA800-8-230

230

125

VT4.8

220/380

50/60Hz

1/3

manual

1000

BLA1000-8-230

230

200

VT4.16

220/380

50/60Hz

3

manual/electric

1500

BLA1500-8-300

300

200

VT4.16

220/380

50/60Hz

3

manual/electric

2000

BLC2000-10-300

300

200

V4.25

220/380

50/60Hz

3

manual/electric

Customized

Customized Customized Customized Customized Customized Customized Customized Customized


Product Advantage

Our products have the characteristics of high efficiency, safety and reliability, saving time and labor.Our products meet most industrial standards, we have pass ISO9001, CE system certification.  And on this basis, we strictly implement high product standards, we have strict control for raw materials, accessories and working processes,  so that our products are more competitive in the market, our buyers are all over the world, our products have won unanimous praise from customers.


Product Operate Guide

The device is simple to operate; by using the appropriate buttons you can perform tasks such as material absorption, transfer, lifting, turning and releasing:

1.Fitting with the board: Control the electric hoist to move the vacuum crane above the board, and then lower it onto the board;

2.Suction board: push the push-pull valve forward, and the vacuum suction cup will start to automatically absorb the board. When the vacuum degree reaches the requirement, that is, when the suction conditions are met, the green indicator light will light up. At the same time, the electric hoist will be operated to drive, so that it can be lifted and run horizontally.

3.Moving plates: Control the electric hoist to move to the discharge position;

4.Release the plate: Press the safety pin on the push-pull valve and pull the push-pull valve backward to release the plate.


Application Scenario
